Cembre PVC Insulated Butts

Cembre PVC Insulated Butts

Descriptions

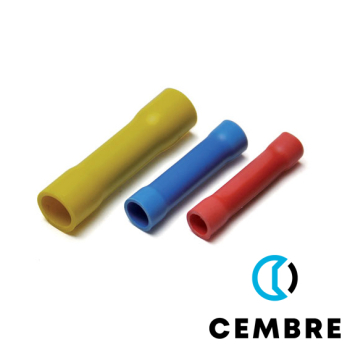

Cembre PL series PVC Insulated butts are manufactured from electrolytic copper tube Cu-OF CW008A according to EN 13600:2003. The connectors are electrolytically tin plated with a minimum thickness of 3μm to avoid oxidation, annealed to guarantee optimum ductility to withstand the severe deformation arising when compressed.

Cembre PL series PVC insulated butts can be used within the following temperature range: -20 to +80°C (Surge +90°C) and can be stored at a minimum temperature -40°C.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Conduit Size ø L Colour Price Unit Quantity
PL03-M PL03-M PVC insulated butt 0.25-1.5mm² 0.25-1.25mm² M4 25 Red
£10.50 (exc VAT) per 100
£12.60 (inc VAT)
PL06-M PL06-M PVC insulated butt 1.5-2.5mm² 1.5-2.5mm² M5 25 Blue
£11.70 (exc VAT) per 100
£14.04 (inc VAT)
PL1-M PL1-M PVC insulated butt 4-6mm² 4-6mm² M6.5 32mm Yellow
£16.50 (exc VAT) per 100
£19.80 (inc VAT)
