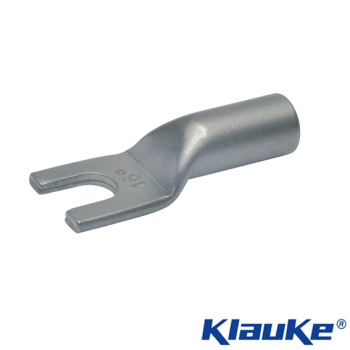

Klauke Nickel Fork Terminal

Descriptions

Nickel fork cable lugs for high temperatures up to 650°C for multi and fine stranded round conductors, e.g. according to DIN EN 60228 Cl. 2 and 5 and pre-rounded multi-stranded sector shaped conductors. Used when cable connections require a fork or spade terminal rather than a ring and are exposed to extremely high temperatures of up to 650°C.

Klauke range of nickel forks/spades can accommodate cables or wires from 0.5 to 16mm² and are supplied in packs of 50 pieces.

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Nominal cross section	Size of bolt (ø)	d1	a	b	d2	d4	l	Price	Quantity
56C4	Klauke 56C4 M4 Nickel Fork Terminal 0.5-1mm²	0.5-1mm²	M4	1.6mm	6mm	6.5mm	4.3mm	3.2mm	13mm	£66.37 (exc VAT) per 50 £79.64 (inc VAT)	- +
56C5	Klauke 56C5 M5 Nickel Fork Terminal 0.5-1mm²	0.5-1mm sq	M5	1.6mm	6mm	7.5mm	5.3mm	3.2mm	14mm	£68.09 (exc VAT) per 50 £81.71 (inc VAT)	- +
57C4	Klauke 57C4 M4 Nickel Fork Terminal 0.5-2.5mm²	1.5-2.5mm²	M4	2.3mm	6mm	7mm	4.3mm	3.9mm	13mm	£69.10 (exc VAT) per 50 £82.92 (inc VAT)	- +
57C5	Klauke 57C5 M5 Nickel Fork Terminal 0.5-2.5mm²	0.5-2.5mm²	M5	2.3mm	6mm	7.5mm	5.3mm	3.9mm	14mm	£70.59 (exc VAT) per 50 £84.71 (inc VAT)	- +
57C6	Klauke 57C6 M6 Nickel Fork Terminal 0.5-2.5mm²	1.5-2.5mm²	M6	2.3mm	6mm	9.5mm	6.5mm	3.9mm	16mm	£74.75 (exc VAT) per 50 £89.70 (inc VAT)	- +
58C4	Klauke 58C4 M4 Nickel Fork Terminal 4-6mm²	4-6mm²	M4	3.6mm	9mm	9.5mm	4.3mm	5.6mm	18mm	£94.99 (exc VAT) per 50 £113.99 (inc VAT)	- +
58C5	Klauke 58C5 M5 Nickel Fork Terminal 4-6mm²	4-6mm²	M5	3.6mm	9mm	9.5mm	5.3mm	5.6mm	19mm	£97.24 (exc VAT) per 50 £116.69 (inc VAT)	- +
58C6	Klauke 58C6 M6 Nickel Fork Terminal 4-6mm²	4-6mm²	M6	3.6mm	9mm	9.5mm	6.5mm	5.6mm	19mm	£101.41 (exc VAT) per 50 £121.69 (inc VAT)	- +
59C5	Klauke 59C5 M5 Nickel Fork Terminal 10mm²	10mm²	M5	4.5mm	10mm	12mm	5.5mm	6.5mm	21mm	£178.19 (exc VAT) per 50 £213.83 (inc VAT)	- +
59C6	Klauke 59C6 M6 Nickel Fork Terminal 10mm²	10mm²	M6	4.5mm	10mm	12mm	6.5mm	6.5mm	22	£181.03 (exc VAT) per 50 £217.24 (inc VAT)	- +
60C5	Klauke 60C5 M5 Nickel Fork Terminal 16mm²	10mm²	5.5mm	13mm	12mm	5.5mm	7.5mm	7.5mm	26mm	£201.83 (exc VAT) per 50 £242.20 (inc VAT)	- +
60C6	Klauke 60C6 M6 Nickel Fork Terminal 16mm²	16mm²	M6	5.5mm²	13mm	12mm	6.5mm	7.5mm	27mm	£208.77 (exc VAT) per 50 £250.52 (inc VAT)	- +
60C8	Klauke 60C8 M8 Nickel Fork Terminal 16mm²	16mm²	M8	5.5mm	13mm	13.5m	8.5mm	7.5mm	29mm	£221.51 (exc VAT) per 50 £265.81 (inc VAT)	- +
