88V12 Klauke M12 stainless steel lug 95mm²

Stock Code: 88V12
£120.69 (exc VAT) 10 per Pack
£144.83 (inc VAT)
Quantity:
10 per Pack
- +

The 88V12 Klauke M12 stainless steel lug 95mm² from Klauke's range of V2A stainless steel lugs for extreme environments and high temperatures up to 400°C

Characteristics
•Flat contact surface by special pressing technology
•Simple and safe connection due to flat contact surfaces and internal chamfer
•For multi-stranded round conductors, e.g. to DIN EN 60228 Cl. 2
•For pre-rounded stranded sector shaped conductors
•Ideal for aggressive environmental conditions, acid and rust-resistant
•Heat resistant up to 400 °C

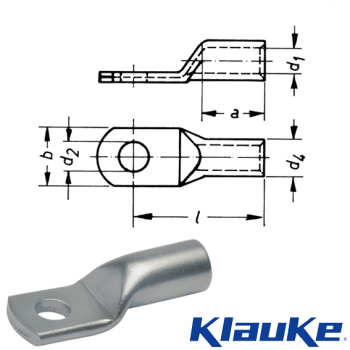

Material: V2A

Nominal cross section95mm²
Size of bolt (ø)M12
d114mm
a25mm
b26mm
d213mm
d418mm
l49mm

There are no downloads for this product.
